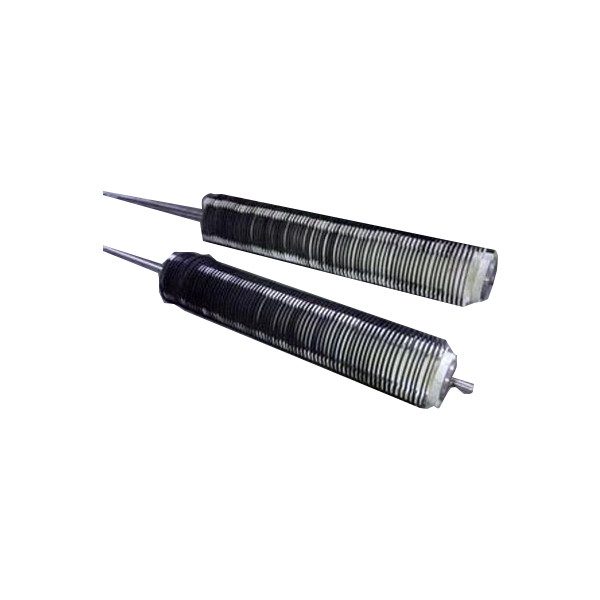

0Cr25Al5 FeCrAl Resistance Wire
0Cr25Al5 FeCrAl Resistance Wire (product code PT-XHA-EHA-00027) is listed under Industrial Products & MRO > Special Alloys > Electric Heating Alloys and supplied in Singapore by PANDA COLLECTIONS (PANDATEC PTE. LTD.), a B2B procurement partner for businesses. A cost-effective iron-chromium-aluminium resistance alloy forming an Al₂O₃ scale, with high resistivity and good oxidation resistance below about 1000 °C. Prices are quoted on request.
| Product code | PT-XHA-EHA-00027 |
|---|---|
| Category | Industrial Products & MRO > Special Alloys > Electric Heating Alloys |
| Grade / designation | GB/T 1234 0Cr25Al5 (Fe-Cr-Al) |
| Product form | Wire |
| Applicable standards | GB/T 1234-2012, ASTM B603 (confirmed per order) |
| Available forms | Wire, flat ribbon, formed furnace elements, hot-rolled bar |
| Certificates | EN 10204 3.1 MTC on request |
| Minimum order | On request |
| Country of origin | China |
| Pricing | On request – customised quotation by PANDA COLLECTIONS |
| Supplied in | Singapore |
Product description
A cost-effective iron-chromium-aluminium resistance alloy forming an Al₂O₃ scale, with high resistivity and good oxidation resistance below about 1000 °C. PANDA COLLECTIONS sources 0Cr25Al5 for buyers in Singapore and internationally for project and bulk orders. Mill test certificates to EN 10204 3.1, full heat traceability, melting route (e.g. ESR/VAR), heat-treatment condition and NDT/testing requirements are confirmed per enquiry. Prices are not listed online; every order is quoted individually based on grade, dimensions, quantity, testing and certification requirements.
Technical data
| Chemical composition (%) | Cr 23–26, Al 4.5–6.5, Ni ≤0.6, C ≤0.06, Si ≤0.6, Mn ≤0.5, Fe bal. |
|---|---|
| Mechanical properties | Rm ≥600 MPa, A5 ≥12 % |
| Physical properties | Density 7.1 g/cm³; resistivity 1.42 μΩ·m (20 °C); melting point 1470–1510 °C |
Typical applications
- Continuous heat-treatment furnaces
- Mesh-belt quench furnaces
- Heating tubes
- Appliance heaters
- Resistor boxes
Industries: Heat Treatment & Industrial Furnaces, Appliance Manufacturing
Updated October 27, 2026
Frequently asked questions
What is 0Cr25Al5 used for?
Continuous heat-treatment furnaces, mesh-belt quench furnaces, heating tubes, appliance heaters, resistor boxes.
Which standards apply to 0Cr25Al5?
GB/T 1234-2012, ASTM B603. Compliance, testing and certificates are confirmed for each order.
What forms and sizes of 0Cr25Al5 are available?
Wire, flat ribbon, formed furnace elements, hot-rolled bar. Sizes are cut or produced to order.
How do I get a price for 0Cr25Al5 FeCrAl Resistance Wire?
Prices are not published. Request a customised quotation from PANDA COLLECTIONS with the product code PT-XHA-EHA-00027, size, quantity, testing and certificate requirements, and delivery address.
Can mill test certificates be provided?
Mill test certificates to EN 10204 3.1 with heat traceability can be requested. Melting route (e.g. ESR/VAR), heat-treatment condition and NDT requirements are confirmed per enquiry.

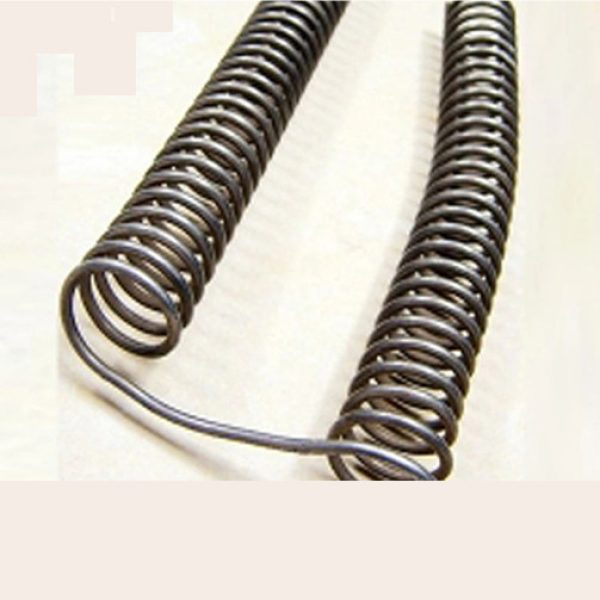

Ni80Cr20 Heating Elements for Glass Tempering Furnaces

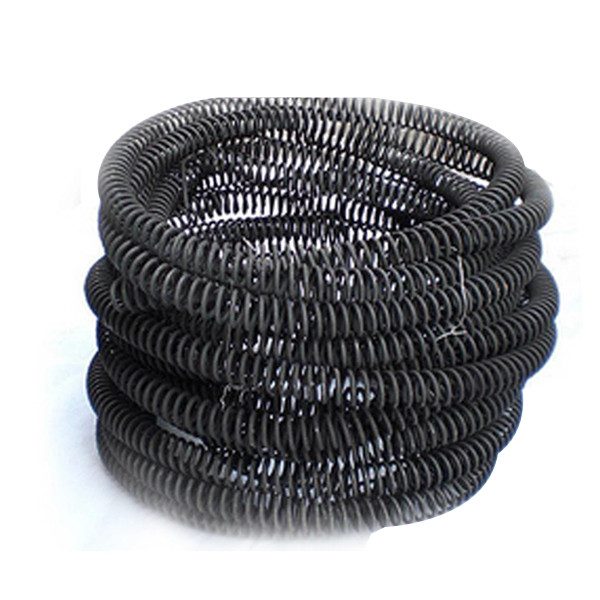

Cr20Ni80 Nickel-Chromium Resistance Wire

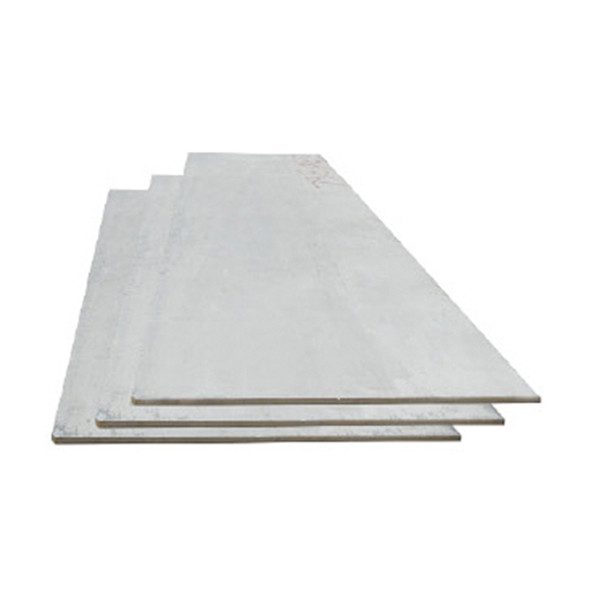

Cr30Ni70 Nickel-Chromium Alloy Plate
