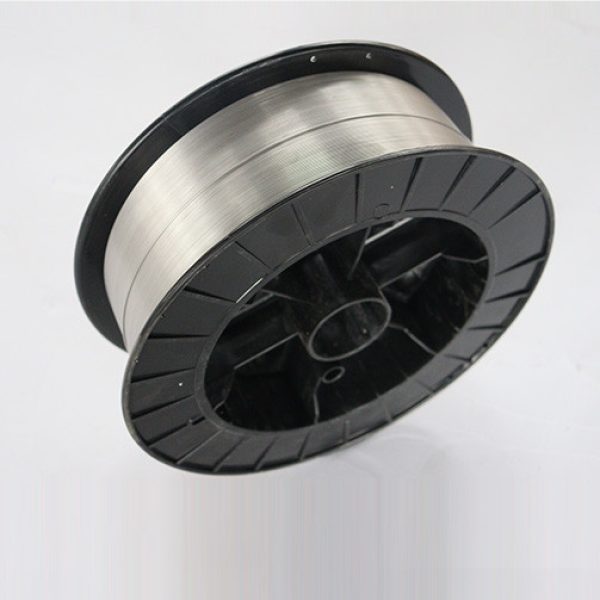

Cr15Ni60 Nickel-Chromium Resistance Wire
Cr15Ni60 Nickel-Chromium Resistance Wire (product code PT-XHA-EHA-00006) is listed under Industrial Products & MRO > Special Alloys > Electric Heating Alloys and supplied in Singapore by PANDA COLLECTIONS (PANDATEC PTE. LTD.), a B2B procurement partner for businesses. A nickel-chromium-iron resistance alloy for service below about 900 °C, with good ductility, weldability and a stable austenitic structure. Prices are quoted on request.
| Product code | PT-XHA-EHA-00006 |
|---|---|
| Category | Industrial Products & MRO > Special Alloys > Electric Heating Alloys |
| Grade / designation | GB/T 1234 Cr15Ni60 |
| Product form | Wire |
| Applicable standards | GB/T 1234-2012, ASTM B344 (confirmed per order) |
| Available forms | Wire, flat ribbon, strip, formed elements, bar, plate, pipe |
| Certificates | EN 10204 3.1 MTC on request |
| Minimum order | On request |
| Country of origin | China |
| Pricing | On request – customised quotation by PANDA COLLECTIONS |
| Supplied in | Singapore |
Product description
A nickel-chromium-iron resistance alloy for service below about 900 °C, with good ductility, weldability and a stable austenitic structure. PANDA COLLECTIONS sources Cr15Ni60 (Ni60Cr15) for buyers in Singapore and internationally for project and bulk orders. Mill test certificates to EN 10204 3.1, full heat traceability, melting route (e.g. ESR/VAR), heat-treatment condition and NDT/testing requirements are confirmed per enquiry. Prices are not listed online; every order is quoted individually based on grade, dimensions, quantity, testing and certification requirements.
Technical data
| Chemical composition (%) | Cr 15–18, Ni 55–61, Si 0.75–1.6, Mn ≤0.6, C ≤0.08, Al ≤0.5, Fe bal. |
|---|---|
| Mechanical properties | Rm ≥600 MPa, A5 ≥25 % |
| Physical properties | Density 8.2 g/cm³; resistivity 1.12 μΩ·m (20 °C); melting point 1368–1405 °C |
Typical applications
- Electric heating tubes
- Appliance heaters
- Resistor strips
- Light-duty furnace elements
Industries: Appliance Manufacturing, Electrical & Electronics, Heat Treatment
Updated October 27, 2026
Frequently asked questions
What is Cr15Ni60 (Ni60Cr15) used for?
Electric heating tubes, appliance heaters, resistor strips, light-duty furnace elements.
Which standards apply to Cr15Ni60 (Ni60Cr15)?
GB/T 1234-2012, ASTM B344. Compliance, testing and certificates are confirmed for each order.
What forms and sizes of Cr15Ni60 (Ni60Cr15) are available?
Wire, flat ribbon, strip, formed elements, bar, plate, pipe. Sizes are cut or produced to order.
How do I get a price for Cr15Ni60 Resistance Wire?
Prices are not published. Request a customised quotation from PANDA COLLECTIONS with the product code PT-XHA-EHA-00006, size, quantity, testing and certificate requirements, and delivery address.
Can mill test certificates be provided?
Mill test certificates to EN 10204 3.1 with heat traceability can be requested. Melting route (e.g. ESR/VAR), heat-treatment condition and NDT requirements are confirmed per enquiry.
